The vials are fed into the cartoner in a single lane via a turntable.

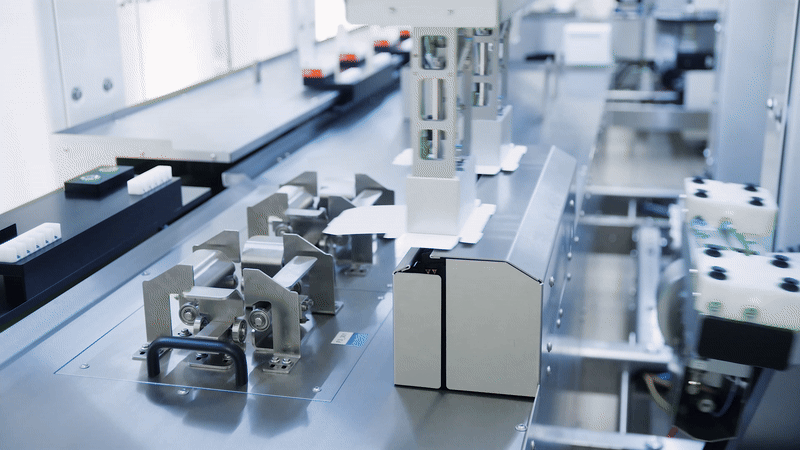

The flat blanks are stored in a magazine. The TLM-F3 robot picks up a blank and transfers it to the TLM-F2 robot. After the code check, the TLM-F2 robot passes the blank over the glue nozzles and presses it through a folding box. In this way, the cartoner erects the carton.

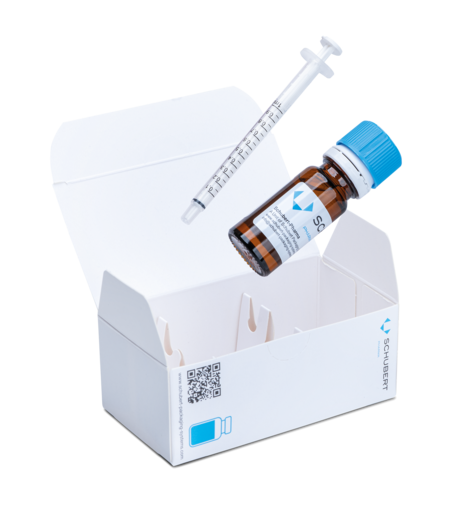

Another TLM-F2 robot takes the partition from the TLM-F3 robot, folds it at the designated point and glues it into the erected carton.

A camera at the infeed detects the vials and reads the data from the label. Using this information, the TLM-F4 robot picks up the products and groups them on the Transmodul. A TLM-F2 robot then loads the vials precisely into the cartons. In this way, the cartoner ensures safe and clean filling.

A TLM-F3 robot removes the package inserts from a magazine, checks the code and transfers them to the TLM-F2 robot. The TLM-F2 then places the inserts on top of the products inside the carton.

The TLM-F2 robot closes the carton and places it onto the outfeed conveyor. This completes the packaging process in the cartoner.
